Contact us for price
Stock status: Call Store for Availability

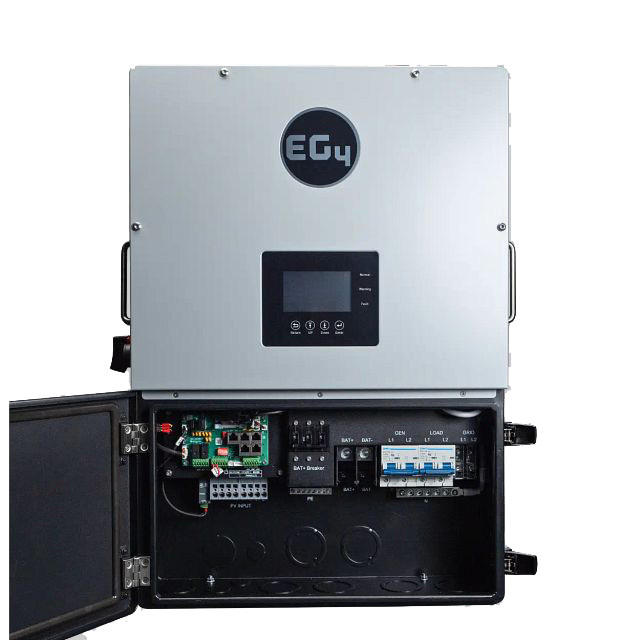

The EG4® 18kPV hybrid inverter/charger is a robust solution for solar users seeking flexibility and efficiency. EMP-hardened to withstand natural or manmade disruptions. The 18kPV Inverter supports both grid-tied and off-grid applications, allowing for ultimate energy independence. With 18kW PV input and 12kW output, the inverter offers high energy handling and can parallel up to 10 units for expanded capacity. A 600V DC input and three MPPTs ensure optimal energy conversion and streamlined cable management. The 18kPV provides split-phase 120/240V or 120/208V output and integrates seamlessly with 48V EG4 or other battery brands. Built-in Wi-Fi enables remote monitoring via the EG4 app, making it ideal for homes and businesses focused on solar savings and energy independence. To learn more, download the spec sheet and user manual.
| EG4 18KPV | |
| Battery Input Voltage | 48V |
| Rapid Shutdown Capable | YES |
| Maximum Paired Solar (DC Input) | 21000W |
| Integrated MPPT Charge Controllers | 3 |
| Maximum Continuous Power | 12000W |
| CEC Weighted Efficiency | 96.90% |
| Parallel Stacking | 10 |
| Weight | 121.25 lbs (55kg) |
| Dimensions (W x H x D) | 34.3×20.5×11.2 in. (87×52×28.5 cm) |
| Warranty Period | 10 years |
| Battery Compatibility | Briggs & Stratton® SimpliPHI® 6.6 |
