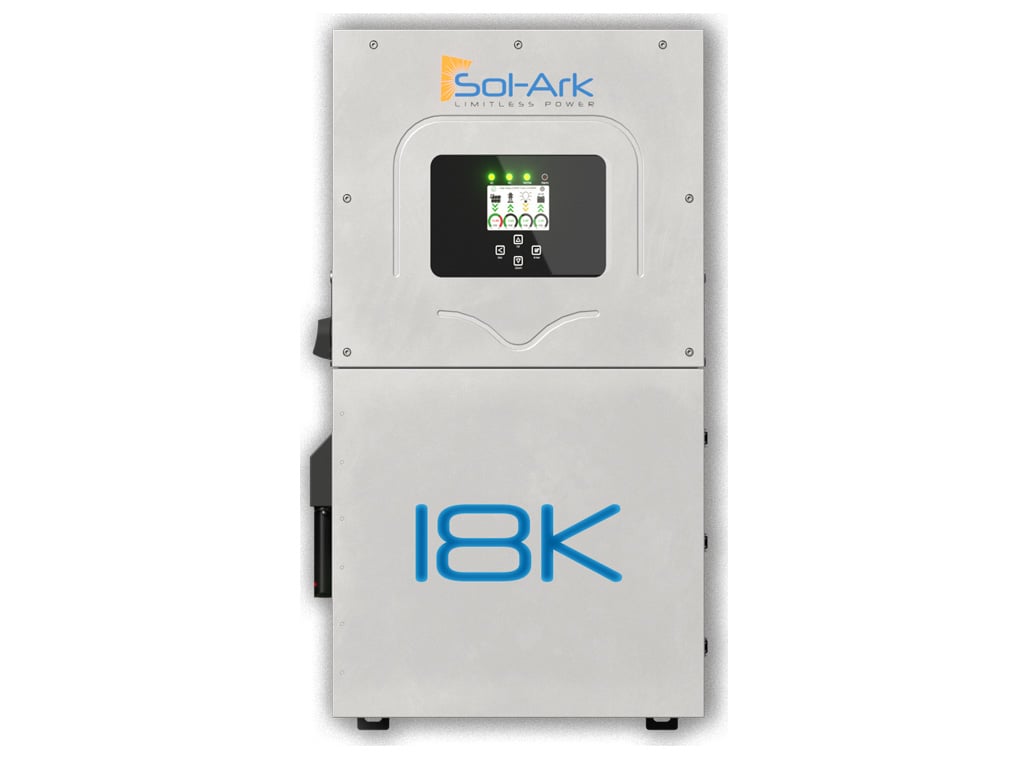

The Sol-Ark® 18K-2P-LV hybrid inverter is engineered for the most grueling off-grid or home back-up needs, delivering up to 18kW of continuous power directly from battery storage to support large loads, as well as 36kVA of surge power for 10s for demanding loads like HVAC units and motors. The 18K-2P-LV supports more PV than any other residential inverter (over 40kW when utilizing AC coupled functionality). This power-house unit runs American engineered firmware, keeps your data stateside, and comes standard with a 10-year warranty. To learn more, download the spec sheet and installation manual, or visit Sol-Ark’s website.
PV DC Disconnect Switch, Ground Fault Detection, PV Arc Fault Detection, PV Input Lightning Protection, PV String Input Reverse Polarity Protection, AC Output Breaker - 200A, Surge Protection DC Type II / AC Type II
Rapid Shutdown Capable
Yes
Integrated MPPT Charge Controllers
3
Maximum Continuous Power
18kW
Surge Power (5s)
36kVA
Parallel Stacking
Up to 12 in parallel
Weight
62.4 kg / 137 lb
Dimensions (W x H x D)
863 x 464 x 282 mm (34 x 18.3 x 11.1 in)
Warranty Period
10 years
Battery Compatibility
Lithium / Lead Acid, 48V
Automatic Generator Start
2 wire start
Monitoring
MySolArk App
Certifications
UL1741 3rd SB, UL 1741 CRD-PCS, IEEE1547-2018 and interoperability using IEEE2030.5, Hawaiian Electric SRD V2.0, UL1699B PVDC AFCI, CSA C22.2 No.107
