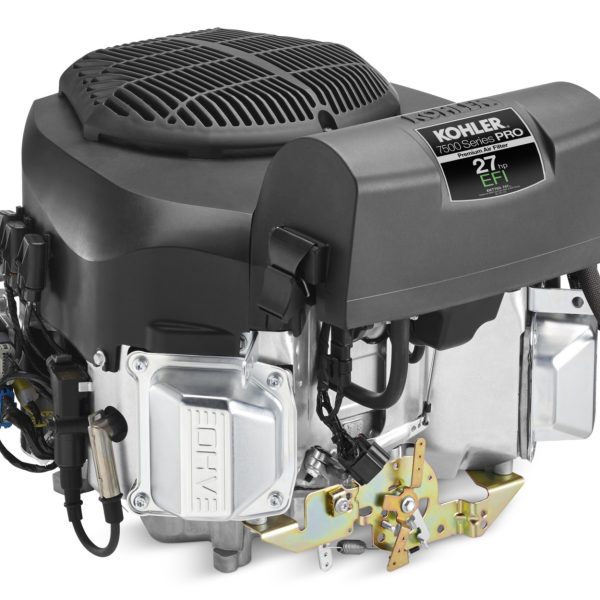

Kohler 7500 Series EFI EKT750
Kohler 7500 Series EFI EKT750
Kohler 7500 Series EFI EKT750
Kohler 7500 Series EFI EKT750
Kohler 7500 Series EFI EKT750
Kohler 7500 Series EFI EKT750
Kohler 7500 Series EFI EKT750
Kohler 7500 Series EFI EKT750

Kohler 7500 Series EFI EKT750

Contact us for price

Stock status: Call Store for Availability

Everybody knows the best mowers are powered by the best engines. That’s why we designed the fuel-injected 7500 Series™ EFI engine. With this powerhouse, it’s all about easy starting, reliability and fewer trips to the gas station-so you can have more time to relax. Features a 3 year, unlimited hour, limited warranty.

  • Built to start the first time, designed for easy spring starts
  • Available with up to 27 hp- the most powerful KOHLER consumer engine
  • Consistent-Cut™ power-keeps you cutting in tall, wet grass
  • Worry-free-engine adjusts to gas with ethanol up to E10
  • No trips to the service center for costly carburetor repairs

Specs

Engine Type

Four-cycle, twin-cylinder, air-cooled, vertical shaft, gasoline, OHV, cast iron liner with electronic fuel injection.

Model 7500 Series EFI EKT750
Power[1] kw (hp) 20.1(27)@3600rpm
Displacement cm3 (in3) 747 (45)
Bore mm (in) 83 (3.3)
Stroke mm (in) 69 (2.7)
Maximum Torque[1] Nm (lb-ft) 55.2 (40.7)@2600rpm
Compression Ratio 9.1:1
Dry Weight kg (lbs) 38.6 (85)
Oil Capacity L (US qt) 1.9 (2)
Lubrication Pressure lubrication w/full flow filter
Dimensions LxWxH mm (in) 473 x 445 x 354
(18.6 x 17.5 x 13.9)
Certified Power[3] kw (hp) 20.32 (27.25)
Certified rpm rpm 3600
Emissions Compliance
  • EU Stage V
  • EPA Phase III
  • CARB Phase III
Engine Type Consumer

Length is front of air cleaner cover to back of blower housing. Width is side to side. Height is mounting surface to grass screen or air filter.

1 Power (hp) and Torque (ft lbs) specifications for Kohler general purpose engines are rated pursuant to Society of Automotive Engineers (SAE) J1940 based on gross output testing performed according to SAE J1995 without the air cleaner and muffler. Actual engine power and torque are lower and affected by accessories (air cleaner, exhaust, charging, cooling, fuel pump, etc.), application, engine speed, ambient operating conditions (temperature, humidity and altitude) and other factors. This J1940 / J1995 rating provides consistent measurement to customers who may want to control the intake and exhaust features of the engine. For more information, contact Kohler Co. Engine Engineering Department. Kohler Co. reserves the right to change product specifications, designs and standard equipment without notice and without incurring obligation.


2 Inches of H20 @ 3600 RPM WOT


3 J1995 power and torque certified by 3rd Party Witness
