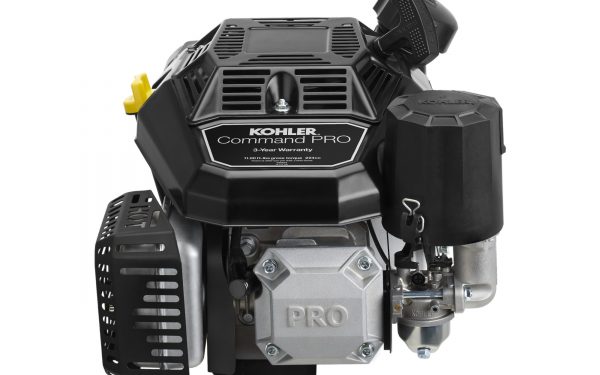

Kohler Command PRO CV224

Contact us for price

Stock status: Call Store for Availability

With best-in-class power,* our all-new Command PRO CV224 is the ultimate engine for commercial walk-behind mowers.

  • Torque output: 11.0 ft-lbs
  • 3-year limited commercial warranty
  • Enjoy effortless starts thanks to our Easy-Pull™ technology
  • Easy pours and less spilling with Accu-Fill® fuel tank’s 45% larger angled fuel neck
  • Consistent-Cut™ technology maintains engine speed for a cleaner turf cut, even in tall, wet grass
  • Cast-iron cylinder liners add durability and engine protection

Specs

Engine Type

Four-cycle, gasoline, OHV, cast iron cylinder bore, aluminum block

Model Command PRO CV224
Displacement cm3 (in3) 224 (13.7)
Bore mm (in) 73 (2.9)
Stroke mm (in) 53.5 (2.1)
Maximum Torque[1] Nm (lb-ft) 14.9 (11)@2600rpm
Compression Ratio 9.2:1
Dry Weight kg (lbs) 16.8 (37)
Oil Capacity L (US qt) 0.59 (0.625)
Lubrication Dual - Full Pressure & Splash
Dimensions LxWxH mm (in) 399 x 353 x 281
(15.7 x 13.9 x 11.1)
Backpressure Limit[2] 40
Emissions Compliance
  • EU Stage V
  • EPA Phase III
  • CARB Phase III
Engine Type Commercial

Length is front of blower housing to back of blower housing. Width is air cleaner cover to muffler guard. Height is mounting surface to grass screen.

1 Power (hp) and Torque (ft lbs) specifications for Kohler general purpose engines are rated pursuant to Society of Automotive Engineers (SAE) J1940 based on gross output testing performed according to SAE J1995 without the air cleaner and muffler. Actual engine power and torque are lower and affected by accessories (air cleaner, exhaust, charging, cooling, fuel pump, etc.), application, engine speed, ambient operating conditions (temperature, humidity and altitude) and other factors. This J1940 / J1995 rating provides consistent measurement to customers who may want to control the intake and exhaust features of the engine. For more information, contact Kohler Co. Engine Engineering Department. Kohler Co. reserves the right to change product specifications, designs and standard equipment without notice and without incurring obligation.


2 Inches of H20 @ 3600 RPM WOT


3 J1995 power and torque certified by 3rd Party Witness
