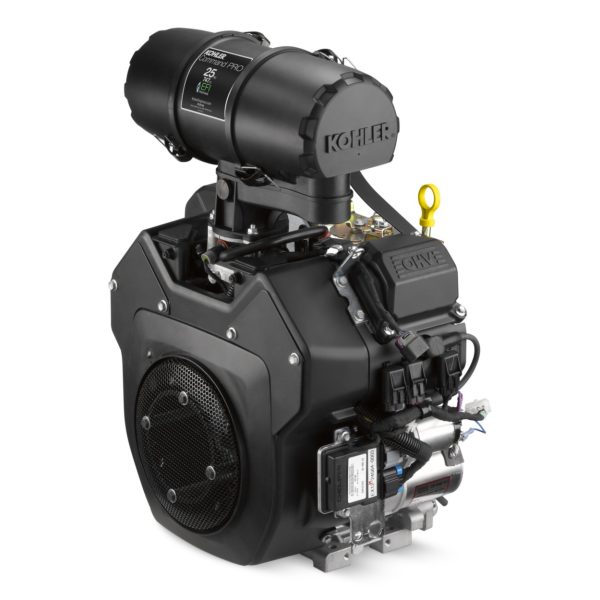

Kohler Command PRO EFI Propane PCH740

Contact us for price

Stock status: Call Store for Availability

KOHLER® Command PRO EFI propane engines are cleaner-burning, more fuel-efficient* options that save you cash hour after hour, year after year. They’re becoming the new alternative to gasoline and diesel fuel and the alternative fuel engines of choice for commercial equipment.

  • Saves significantly on fuel, with less downtime for refueling*
  • KOHLER® EFI propane engines produce over 50% fewer hydrocarbon emissions, helping to reduce smog formation*
  • May be used on Ozone Action Days and can help you win “green” contracts
  • Advanced sensor technology allows engine to optimize performance by automatically adapting to operating conditions
  • Starts like your car – just turn the key and go
  • KOHLER® 3-year commercial warranty

Specs

Engine Type

4-cycle, gasoline, OHV, cast iron cylinder liners, aluminum block, electronic fuel injection

Model Command PRO EFI Propane PCH740
Power[1] kw (hp) 18.6(25)@3600rpm
Displacement cm3 (in3) 747 (45)
Bore mm (in) 83 (3.3)
Stroke mm (in) 69 (2.7)
Maximum Torque[1] Nm (lb-ft) 52.8 (39)@2800rpm
Compression Ratio 9.1:1
Dry Weight kg (lbs) 49 (108)
Oil Capacity L (US qt) 1.9 (2)
Lubrication Full pressure w/full-flow filter
Dimensions LxWxH mm (in) 376 x 480 x 622
(14.8 x 18.9 x 24.5)
Backpressure Limit[2] 50
Certified Power[3] kw (hp) 18.1 (24.3)
Certified rpm rpm 3600
Emissions Compliance
  • EPA Phase III
  • CARB Phase III
Engine Type Commercial

Length is grass screen to PTO mounting face. Width is spark plug to spark plug. Height is top of air cleaner cover to mounting feet.

1 Power (hp) and Torque (ft lbs) specifications for Kohler general purpose engines are rated pursuant to Society of Automotive Engineers (SAE) J1940 based on gross output testing performed according to SAE J1995 without the air cleaner and muffler. Actual engine power and torque are lower and affected by accessories (air cleaner, exhaust, charging, cooling, fuel pump, etc.), application, engine speed, ambient operating conditions (temperature, humidity and altitude) and other factors. This J1940 / J1995 rating provides consistent measurement to customers who may want to control the intake and exhaust features of the engine. For more information, contact Kohler Co. Engine Engineering Department. Kohler Co. reserves the right to change product specifications, designs and standard equipment without notice and without incurring obligation.


2 Inches of H20 @ 3600 RPM WOT


3 J1995 power and torque certified by 3rd Party Witness
